DP400 OJI Special Platinum
(The remodeling of changing to PC1066 from PC800 )

2002/10/06
2002/10/7 update(result of Super-pi and 1.8G normal data）
2002/10/13 update Xeon MP 1.5G OverClocking
2002/11/2 update New stepping Xeon 2.4GHz OverClocking

Special thanks Mr.kaz-n

The remodeling of changing to PC1066 from PC800.

It's has been starting from that looked for Jumper pattern 100/133 setting.
We couldn't help pursuing about fastest machine and good remodeling.
Our remodeling were establishing a new record on remodeling world using by Dual CPU platform.
But our thinking is always unpossible to stop to make a new idea.
Anyway we wanted to run FSB133 with real meanings. That's PC1066!

We settled by exchanging Memory Clock Generator.

evaluation system

We expected the great OverClocking using by Xeon2.8G CPU.
But That was not so good using less than basic magnification.
But Xeon 1.8G CPU running by FSB133 has really a great achievement score.
That clock is running about 2.7GHz, also 2.8GHz CPU's clock was about 3.5GHz.

If you are going to get Xeon's CPU, you'd better to get 1.8GHz.
The reason why that Xeon 1.8G CPU has a good success rate for a general OverClocking case for us.
Most of those who has trying to FSB133 running want to run max speed of the basic magnification.
That's why Xeon 1.8G CPU is not only really economical style but also really high revel's processing speed.
Please look at these score.
That revel is more than normal using of 2.8GHz CPU.

But If you want to get the most high level of score in the world, you have to chose new stepping core cpu.
We might be able to get that CPU, because of the spirit of inquiry of us.

New ! 2002/11/2

We got the new stepping Xeon 2.4GHz
We were overclocking that CPU using our DP400 OJI Special remodeling motherboard.
Please look at that result!
We don't need to say about that. The reason why result was so fantastic!!!!
That result excite us !

Left　side's picture is before, right side's picture is new core Xeon.
New core Xeon is different a little.

And　In the previous CPU, There was the variable magnification problem in dp400.
For example.
even if you want to post to x20 at 2.4GHz CPU.
It was impossible to post.
But new core had no problem.
We were testing x20 using new core CPU 2.4GHz,
It was possible to post usually.

HDBENCH

Super-pi

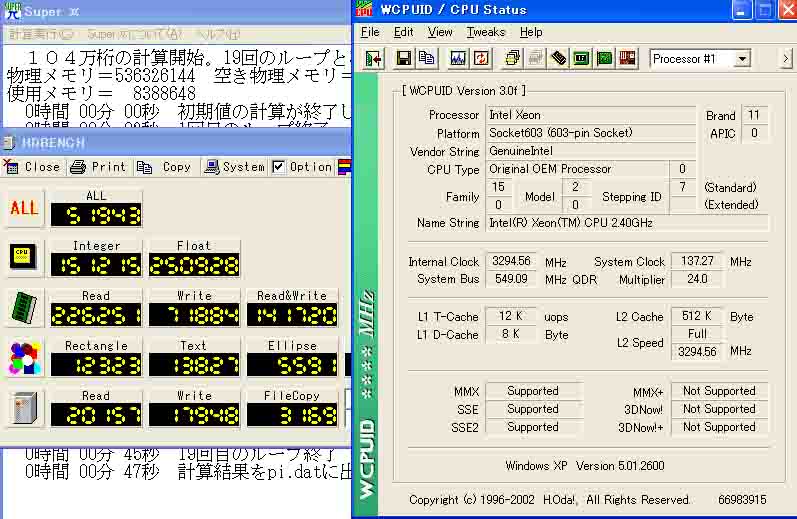

Xeon2.4G @ 3.3G
Vcore1.575V
PC1066memory(FSB*4)
(133booting) x24
Clock 14.7456MHz

Xeon2.8G @ 3.5G
Vcore1.625V
PC1066memory(FSB*4)
(100booting) x28

Xeon1.8G@2.7G
Vcore1.775V
PC1066memory(FSB*4)
(133booting) x18

Super-pi　1'04''

★ ★ ★ HDBENCH Ver 3.22 (C)EP82改/かず ★ ★ ★
M/B Name
Processor No Data 2684.00MHz[GenuineIntel family F model 2 step 4]
VideoCard NVIDIA RIVA TNT2 Model 64
Resolution 800x600 (32Bit color)
Memory 523,756 KByte
OS Windows 2000 5.1 (Build: 2600)
Date 2002/10/06 20:24

Intel(r) 82801BA Bus Master IDE Controller
プライマリ IDE チャネル
QUANTUM FIREBALLP LM20.5

Intel(r) 82801BA Bus Master IDE Controller
セカンダリ IDE チャネル

ALL Integer Float MemoryR MemoryW MemoryRW DirectDraw
40161 128744 205707 227481 77414 157286 0

Rectangle Text Ellipse BitBlt Read Write Copy Drive
0 0 0 0 0 0 0 H:\20MB

Xeon1.8G@2.4G PC1066
Vcore1.775V
PC1066memory(FSB*４) PC１066動作
(133booting) x18

Super-pi　1'12''

★ ★ ★ HDBENCH Ver 3.22 (C)EP82改/かず ★ ★ ★
M/B Name
Processor No Data 2397.17MHz[GenuineIntel family F model 2 step 4]
VideoCard NVIDIA RIVA TNT2 Model 64
Resolution 800x600 (32Bit color)
Memory 523,756 KByte
OS Windows 2000 5.1 (Build: 2600)
Date 2002/10/06 18:53

Intel(r) 82801BA Bus Master IDE Controller
プライマリ IDE チャネル
QUANTUM FIREBALLP LM20.5

Intel(r) 82801BA Bus Master IDE Controller
セカンダリ IDE チャネル

ALL Integer Float MemoryR MemoryW MemoryRW DirectDraw
43742 119761 184373 205567 70913 136035 30

Rectangle Text Ellipse BitBlt Read Write Copy Drive
11961 13370 5111 277 16582 15790 3674 H:\20MB

Xeon1.8G@2.4G PC800動作
Vcore1.775V
PC1066memory(FSB*3) PC800動作
(133booting) x18

Super-pi　1'15'' '

★ ★ ★ HDBENCH Ver 3.22 (C)EP82改/かず ★ ★ ★
M/B Name
Processor No Data 2397.05MHz[GenuineIntel family F model 2 step 4]
VideoCard NVIDIA RIVA TNT2 Model 64
Resolution 800x600 (32Bit color)
Memory 523,756 KByte
OS Windows 2000 5.1 (Build: 2600)
Date 2002/10/06 18:35

Intel(r) 82801BA Bus Master IDE Controller
プライマリ IDE チャネル
QUANTUM FIREBALLP LM20.5

Intel(r) 82801BA Bus Master IDE Controller
セカンダリ IDE チャネル

ALL Integer Float MemoryR MemoryW MemoryRW DirectDraw
41262 118440 184091 161023 55807 109875 30

Rectangle Text Ellipse BitBlt Read Write Copy Drive
11934 13349 5095 277 21134 18737 3368 H:\20MB
