//// Preview //// 2001 July 1

/// My first impression ///

A kanie's New product　has been released, "294M" and "WING".
I am big expecting because this new type of heat sink is that many OverClocker's are interested for great cooling capability.

My first impression is that new product "294M" seems to be fairly improved than the ex-model 238M's

The most different is double fin. Take a look at under the pictures.

Also the "WING" is new product completely.

It looks the most heavy model in the other heat sink in the world.

Both of product are designed for all of the socket type .

I strongly recommend that you buy this new product as soon as possible when this product is hit on computer Market!

But at first, I need to pick up some data of what differs from other famous heat sinks.

Otherwise what I recommend isn't proved to be true.

I try to get into the fastest preview in the world. As you can already know,

I've reviewed EP-8K7A (I think this review was the fastest in the world) (^^;;

I need to keep up to maintain good reputation of mine.

/// 294M ///

The shape is looks like same as 238M, but the shape of the fin becomes attenuate.
In other words
To try to get more a surface area where will be able to become to low heat resistance.
The design of the fin has been changed to become more numbers,

I think you might notice that it's a good design,when I try to do cooling test.

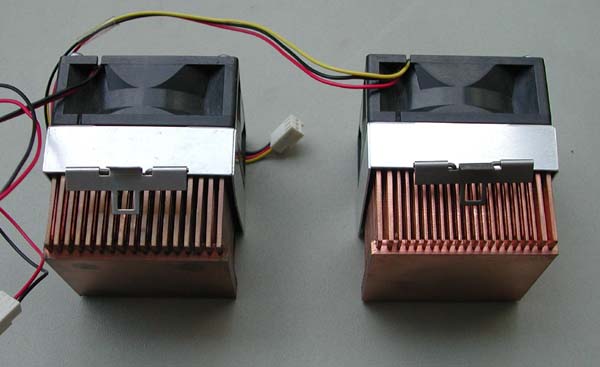

　　　　　　２３８Ｍ２９４Ｍ　（NEW）

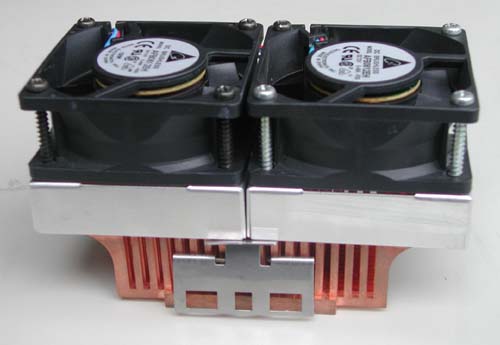

/// WING ///

Obviously, it seems that it is great!
I could install the WING on EP-8K7A without trouble.

I think, the shape of the spring for installation is very good!.

It has 3 holes, that can use all of hooks of CPU socket.

this adjustment system would avoid the anxiety of the socket damage.

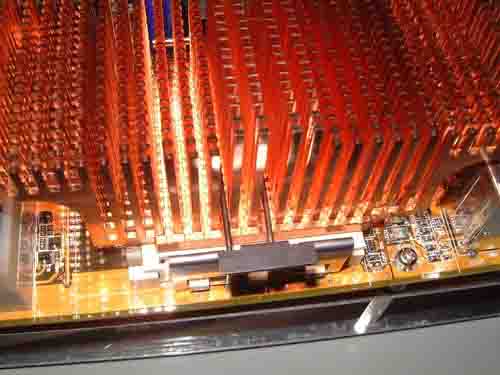

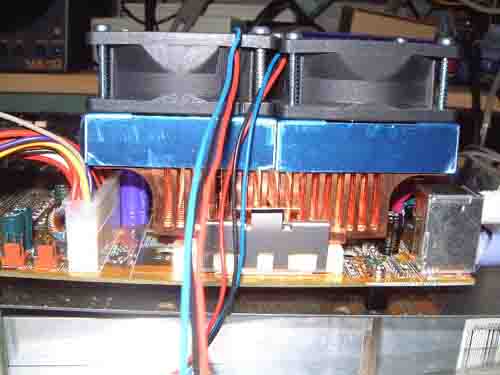

Abit KG7

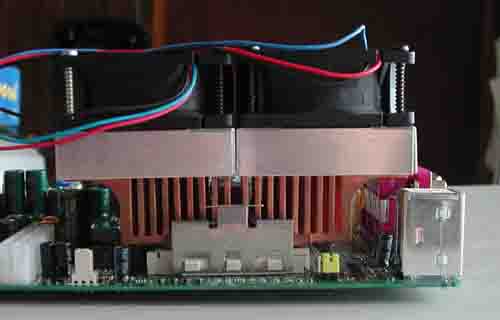

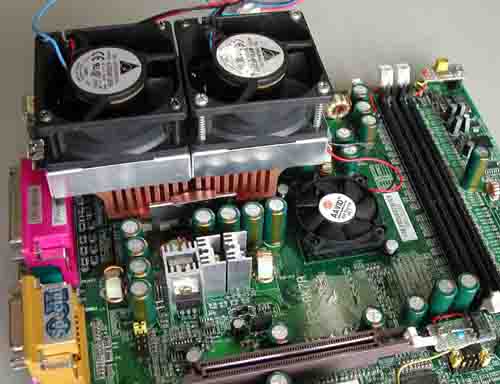

Epox EP-8K7A

/// Test result ///

I try to test that to use only motherboard BIOS.
Because that way is very simply and usually.

But result data is not absolute value.

The comparative object is KANIE 238M, I think may be no problems as very popular.

# The mother board Epox EP-8K7A

# CPU Athlon 1400

# We get the data after running Super-pi software.

The form	The blower	system temperature	CPU temperature	temperature around	the difference of temperature between system and CPU
２３８Ｍ	MELCO	２９℃	４５℃	２３℃	１６℃
２９４Ｍ	MELCO	３１℃	４４℃	２５℃	１３℃
ＷＩＮＧ	DELTA	２９℃	３６℃	２４℃	７℃

/// The reference data 　１　///

# The mother board Epox EP-8K7A

# CPU A1200MP
CPU core voltage is 2.00V , x9

# We get the data about 1,040,000 digit computation end to use Super-pi software.
# Temperature 28℃

CPU Maximum clock

294M -- 1465MHz

WING -- 1480MHz

/// The reference data 　２　///

Thanks! Mr. TAMOJYOURI-SAN

Aug/4/2001

# The mother board Epox EP-8K7A

# CPU Duron900
CPU core voltage is 2.36V , x9

# We get the data about 1,040,000 digit computation end to use Super-pi software.
# Temperature 29℃
# This result has been measured by electronic thermometer.
That's sencer has been puted under heatshink near core place.

1,The temperature change (Duron900@1100 x7)
238M:40.5℃→45℃
Wing:40.5℃→42.5℃

2．It's measured after left.( 1100MHz)
238M:40.5℃
Wing:38.6℃

3,CPU Maximum clock

238M -- 1129MHz

WING -- 1134MHz

/// Evaluation ///

I used this cooler.

It is cooler than 238M.

And it has big advantage, 294M has 3 points , WING has 9 points.

You can understand, it is great!

Weak point are heavy and noisy, but we have no problem, as we are OverClockers !

Also WING may be too big to use into the PC case.

But 294M has light weight than 238M, so It can use of general.
