IWILL DVD266-R   The first report.

At the beginning....

I visited IWLL's information web site.
The motherboard "DVD266-R" gave a big feel to me.
I think that I'd like to get data from a DVD266-R motherboard quickly.
I wonder if I get the motherboard,
I want to set about the preparation immediately.

Please visit http://www.iwill.net/home/home.asp
and find the hyperlink in
http://www.iwill.net/pic/DVD266-R.pdf
You can get the catalog!

Other links.
http://www.watch.impress.co.jp/akiba/hotline/20010414/etc_dvd266.html

http://www.iwillusa.com/


Is that the truth !? or.....

Supports up to 4G Bytes DDR SDRAM.
It's very important things for workstation users.

On board RAID Controller and Sound chip may be cut off by H/W jumper.
It's very important things for Over Clockers.
etc...

If it can,
I want to OverClock!
I want to use for  "The WorkStation"


I got a motherboard at last !!

First,
I try to make installing of hardware and Operating system.
I installed basic system.

CPU           FCPGA Pentium iii 700M(SL45Y) * 2
Cooling FAN TaiSol
Memorys Crucial DDR-SDRAM PC1600, CL2, 128MByte *3
           Crucial DDR-SDRAM PC2100, CL2.5, 64MByte *1
           Total 448MByte
HDD     IBM DTLA-307020 ATA100 20G byte

Generally, sometimes there is a problem only in this work,
but DVD266-R motherboard is installation ending without being in the trouble.

2
I try to kill onboard RAID and Sound systems (^^;.

It was very easy for us, only move jumper switches.

3
I try to OverClock!!

We can set FSB and Vcore voltage on BIOS.
FSB can set 66MHz to 200MHz by 1MHz step.
(I tested 66MHz to 144MHz)
Vcore voltage can set 1.3V to 2.05V by 0.05V step
(I tested default voltage to 1.9V)


★ ★ ★ HDBENCH Ver 3.22 (C)EP82改/かず ★ ★ ★
M/B Name
Processor Dual Pentium III 993.31MHz[GenuineIntel family 6 model 8 step 3]
Cache L1_Data:[16K] L1_Instruction:[16K] L2:[256K]
VideoCard SiS 5598/6326
Resolution 1024x768 (16Bit color)
Memory 327,148 KByte
OS Windows 2000 5.0 (Build: 2195) Service Pack 1
Date 2001/01/01 00:55

VIA Bus Master IDE Controller
プライマリ IDE チャネル
IBM-DTLA-307020
TEAC CD-540E

VIA Bus Master IDE Controller
セカンダリ IDE チャネル

ALL Integer Float MemoryR MemoryW MemoryRW DirectDraw
15484 90663 90329 21394 14145 23682 12

Rectangle Text Ellipse BitBlt Read Write Copy Drive
10876 2115 3520 64 1944 1994 1314 E:\20MB

It checked system performance setting by the slow setting.
However, It is fast!

M/B Name IWILL DVD266-R
Processor Dual Pentium III 943.21MHz[GenuineIntel family 6 model 8 step 3]
             MemoryR MemoryW MemoryRW
 slow     22466        15138         25520
 fast       23966        20628         33523


M/B Name ABIT VP-6
Processor Dual Pentium III 946.92MHz[GenuineIntel family 6 model 8 step 3]
            MemoryR MemoryW MemoryRW
             23167       12465         24762

4
Can I install RAID drive?
I attached HDD to the RAID drive from the primary IDE drive.
It looks like a no problem.
Because It started up with no problem .

But It needs a lot of testing step by step.
I have to test of RAID0 (Mirroring).
The mode is very important for WorkStation users to safety.



5
Can I install full of PCI cards?

I try to make install of these cards.

AGP Millennium G450
PCI1 N/A
PCI2 Sound BLASTER live!
PCI3 Tekram SCSI DC315U
PCI4 Promise FastTrack100
PCI5 melco Modem OGM-PCI56KH
(On board RAID Controller and Sound chip was cut off by H/W jumper.)

The result was very good without trouble !


 ★ ★ ★  HDBENCH Ver 3.22  (C)EP82改/かず ★ ★ ★
M/B Name    IWILL DVD266-R
Processor   Dual Pentium III 943.20MHz[GenuineIntel family 6 model 8 step 3]
Cache       L1_Data:[16K]  L1_Instruction:[16K]  L2:[256K]
VideoCard   Matrox Graphics Millennium G450 AGP
Resolution  1024x768 (16Bit color)
Memory      261,612 KByte
OS          Windows 2000 5.0 (Build: 2195) Service Pack 1
Date        2001/05/01  10:06

VIA Bus Master IDE Controller
プライマリ IDE チャネル

VIA Bus Master IDE Controller
セカンダリ IDE チャネル
  TEAC CD-540E

Win2000 Promise FastTrak100 (tm) Controller
  Promise 1X2 Mirror/RAID11.10

Tekram DC-395U/UW or DC-315/U PCI Ultra SCSI Host Adapter V3.02

   ALL  Integer   Float  MemoryR MemoryW MemoryRW  DirectDraw
 30955    86079   85763    23097   15668    25571          75

Rectangle   Text Ellipse  BitBlt    Read   Write    Copy  Drive
    29153  30561    5760     718   35043   28007   22277  C:\100MB

6

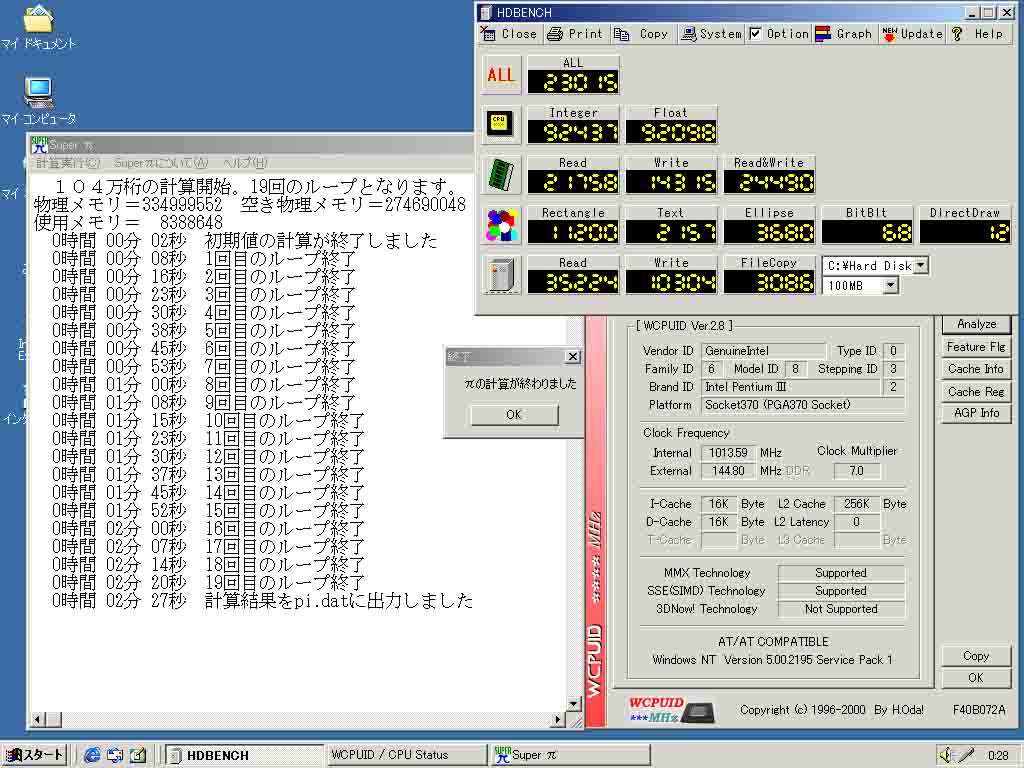

The performance of Pentium iii 1G ?

★ ★ ★  HDBENCH Ver 3.22  (C)EP82改/かず ★ ★ ★
M/B Name
Processor   Dual Pentium III 1010.60MHz[GenuineIntel family 6 model 8 step 6]
Cache       L1_Data:[16K]  L1_Instruction:[16K]  L2:[256K]
VideoCard   SiS 5598/6326
Resolution  1024x768 (16Bit color)
Memory      261,612 KByte
OS          Windows 2000 5.0 (Build: 2195) Service Pack 1
Date        2001/05/01  22:25

VIA Bus Master IDE Controller
プライマリ IDE チャネル

VIA Bus Master IDE Controller
セカンダリ IDE チャネル
  TEAC CD-540E

AMI MegaRAID IDE 100 Controller
  IBM-DTLA-307020         TX3O

   ALL  Integer   Float  MemoryR MemoryW MemoryRW  DirectDraw
 23719    92242   91903   25346   20242    33496          12

Rectangle   Text Ellipse  BitBlt    Read   Write    Copy  Drive
    10876   2015    3554      61   35224   10224    3087  C:\100MB



Memory fast setting
  ALL  Integer   Float  MemoryR MemoryW MemoryRW  DirectDraw
 23719    92242   91903   25346   20242    33496          12


Memory slow setting
   ALL  Integer   Float  MemoryR MemoryW MemoryRW  DirectDraw
 23045    92242   91904   22346   14762    25313          12

OverClocking

  ★ ★ ★  HDBENCH Ver 3.22  (C)EP82改/かず ★ ★ ★
M/B Name   DVD266-R Pentium iii 1GHz
Processor   Dual Pentium III 1111.12MHz[GenuineIntel family 6 model 8 step 6]
Cache       L1_Data:[16K]  L1_Instruction:[16K]  L2:[256K]
VideoCard   Matrox Graphics Millennium G450 AGP
Resolution  1024x768 (16Bit color)
Memory      261,612 KByte
OS          Windows 2000 5.0 (Build: 2195) Service Pack 1
Date        2001/05/01  00:05

VIA Bus Master IDE Controller
プライマリ IDE チャネル

VIA Bus Master IDE Controller
セカンダリ IDE チャネル

AMI MegaRAID IDE 100 Controller
  IBM-DTLA-307020         TX3O

   ALL  Integer   Float  MemoryR MemoryW MemoryRW  DirectDraw
 26860   101216  100847    23038   14947    25208          74

Rectangle   Text Ellipse  BitBlt    Read   Write    Copy  Drive
    31952  32747    6469     712   35043    9869    3093  C:\100MB


 ★ ★ ★  HDBENCH Ver 3.22  (C)EP82改/かず ★ ★ ★
M/B Name   DVD266-R Pentium iii 700MHz
Processor   Dual Pentium III 945.03MHz[GenuineIntel family 6 model 8 step 3]
Cache       L1_Data:[16K]  L1_Instruction:[16K]  L2:[256K]
VideoCard   SiS 5598/6326
Resolution  1024x768 (16Bit color)
Memory      261,612 KByte
OS          Windows 2000 5.0 (Build: 2195) Service Pack 1
Date        2001/05/02  15:45

VIA Bus Master IDE Controller
プライマリ IDE チャネル

VIA Bus Master IDE Controller
セカンダリ IDE チャネル
  TEAC CD-540E

AMI MegaRAID IDE 100 Controller
  IBM-DTLA-307020         TX3O

   ALL  Integer   Float  MemoryR MemoryW MemoryRW  DirectDraw
 22841    86091   85776    23966   20628    33523          12

Rectangle   Text Ellipse  BitBlt    Read   Write    Copy  Drive
    10766   2010    3418      62   34853   10239    3094  C:\100MB
